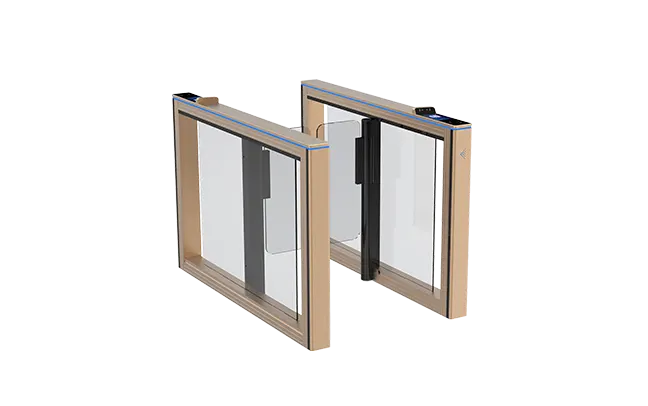

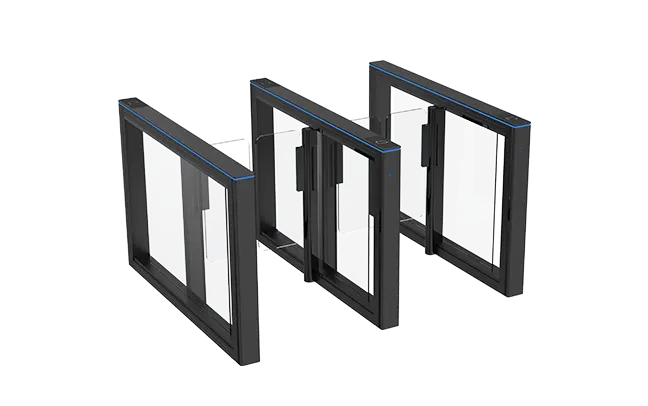

Aluminium Speed Gate LA3217
Reasonable and reliable design, low noise, smooth operation and long service life. With functions of anti-tail, anti-reverse pass and so on. Card can be set "with memory" or "without memory" functions. With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- With functions of anti-tail, anti-reverse pass and so on.
- Card can be set "with memory" or "without memory" functions.
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- With infrared anti-clip function (anti-clip when gate is open or running).
- Compatible with IC, ID card, scanning and face recognition,etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading,etc.
Details
 |
 |
 |

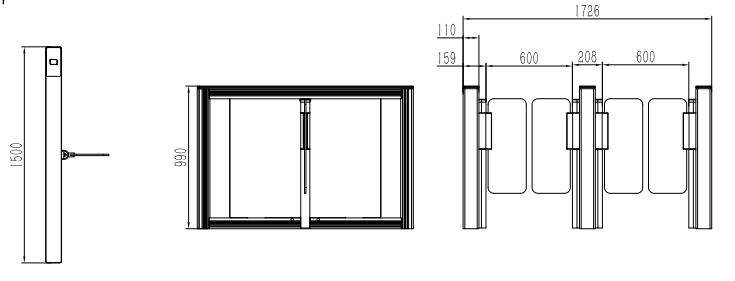

Size Drawing
 |
Parameters
| Size（L*W*H) | 1500*110*990mm |
| Fuselage material | Top T=10mm+boby T=3.0mm aluminum alloy |
| Diaphragm material | 8mm clear acrylic |
| Baffle material | 10mm clear acrylic |
| Pass width | 600-900mm |
| Baffle interception height | 900mm |
| Height of baffle from ground | 340mm |
| Movement | Servo Speed Gate movement |
| Power supply | 24V 500W |
| Input voltage | AC100V~240V,50/60HZ |
| Drive motor | Brushless servo motor |
| Pass rate | Open 50 people/min; Usually closed 35 people/min |
| Speed of opening and closing | Adjustable from 0.5s to 1.5s |
| Sensor pairs | 8 pairs |
| Clutch size | Φ=60mm |
| Pilot lamp | RGB light strip |
| Communication mode | RS485 |
| Controls | Servo control system |
| Noise | ≤65dB |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| Class of protection | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
