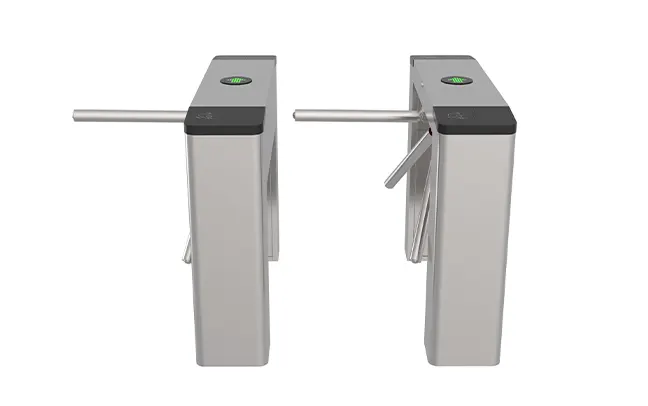

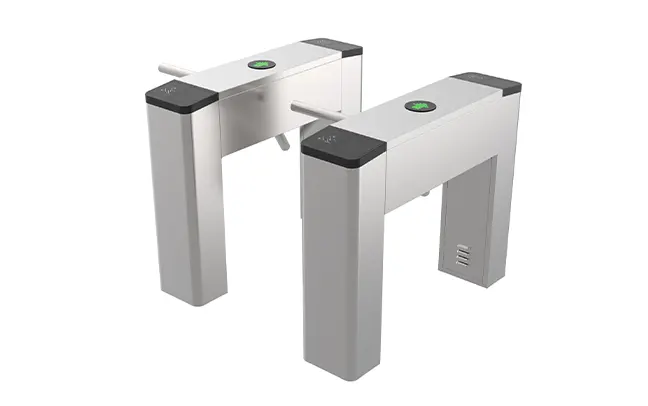

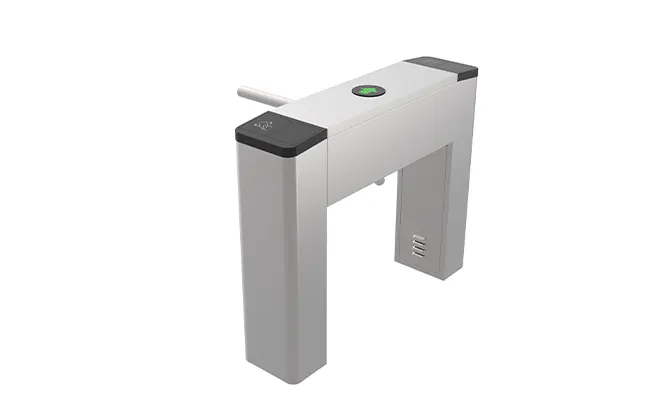

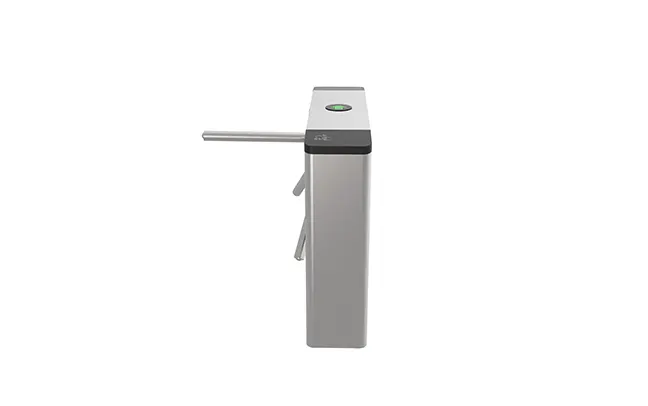

RFID and QR Code Integrated Bridge Tripod Turnstile Y148
Reasonable and reliable design, low noise, smooth operation and long service life. With functions of anti-tail, anti-reverse pass and so on. Card can be set "with memory" or "without memory" functions. With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- Equipped with power-off and pole dropping function, remote control can also be added for pole dropping control.
- LED indicator, valid card showing green, illegal card showing red.
- Card can be set "with memory" or "without memory".
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- Compatible with IC, ID card, scanning and face recognition.
- With unified and standard external electrical interface to facilitate system integration.
- Extensible to realize access control, attendance, fees and other functions.

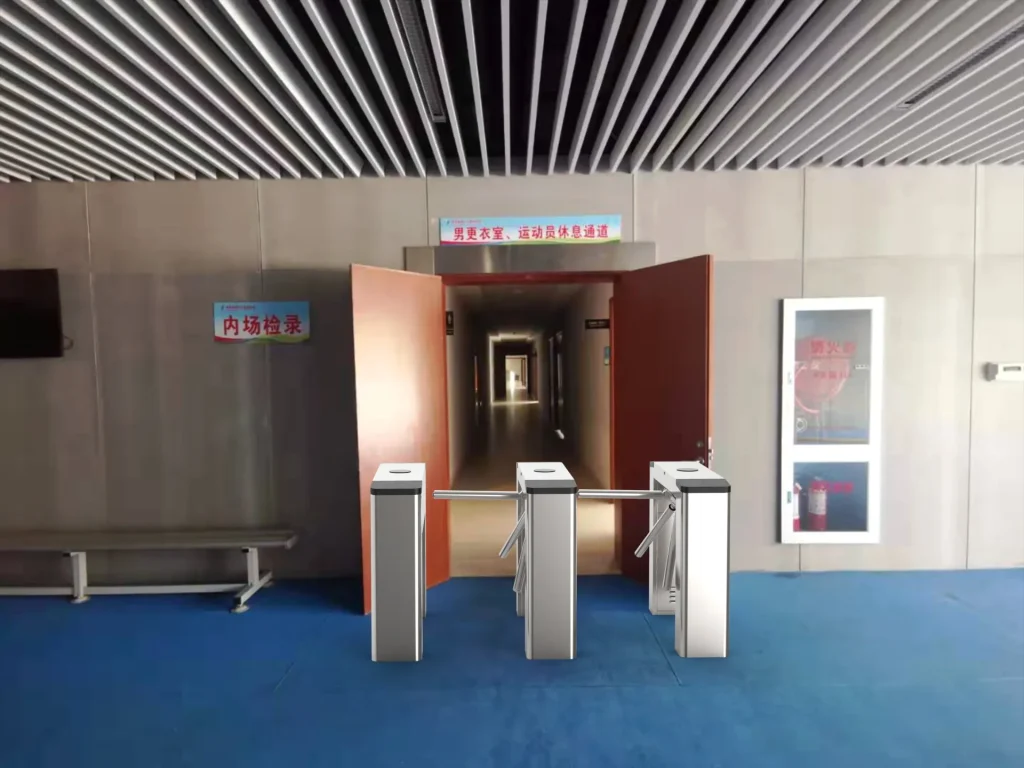

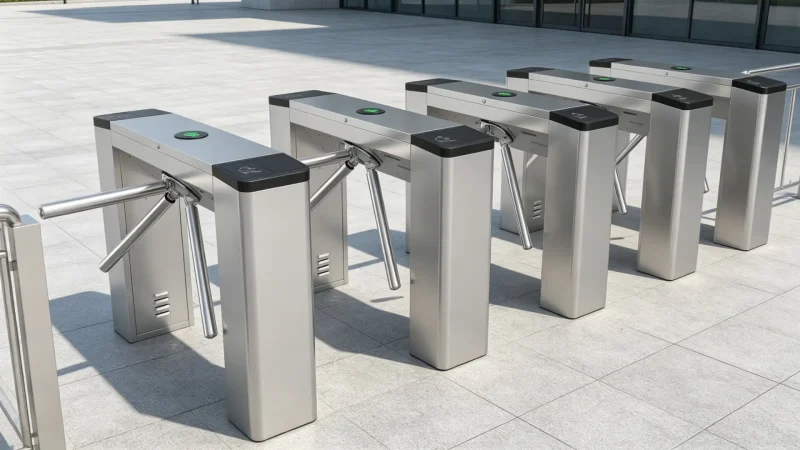

- Can be used outdoors completely, one machine can be used as a lane.
Details
 |
 |

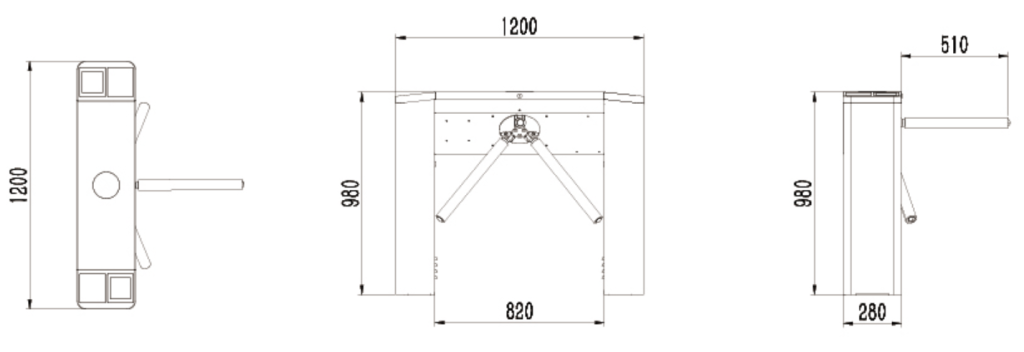

Size Drawing
Parameters
| Size（L*W*H) | 1200*280*980mm |
| Pass width | 550mm |
| Power | 50W |
| Material | δ=1.2 SUS304 |
| Bar Material | SUS201 |
| Movement | Semi-Auto tripod turnstile movement with anti-pass back function |
| Indicator Light | Dynamic indicator light |
| Power Supply | 24V 50W |
| Control Unit | Main board |
| Communication Interface | Dry contact & RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
