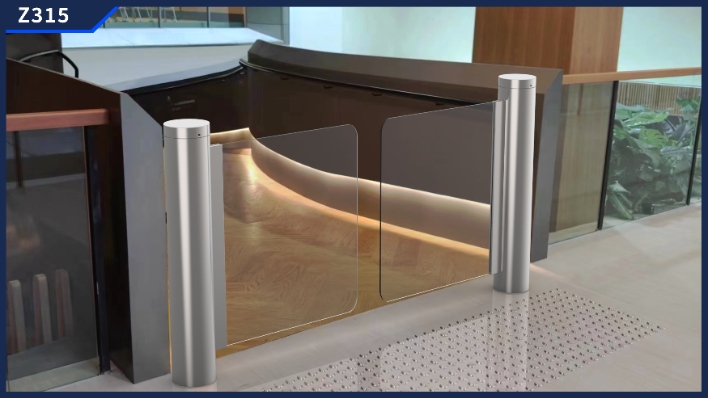

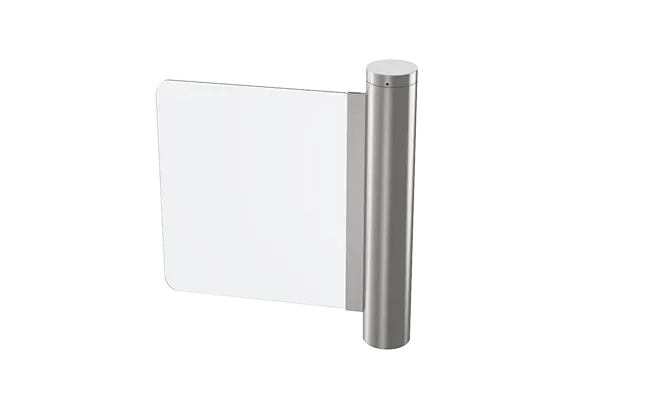

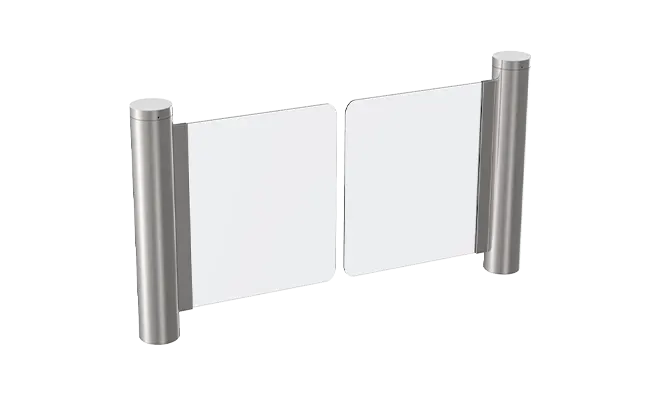

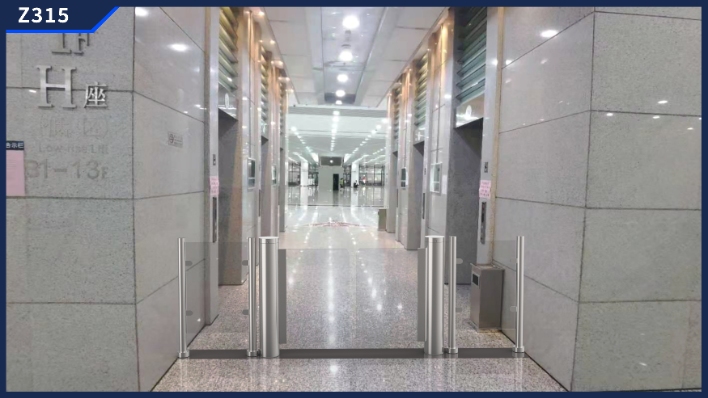

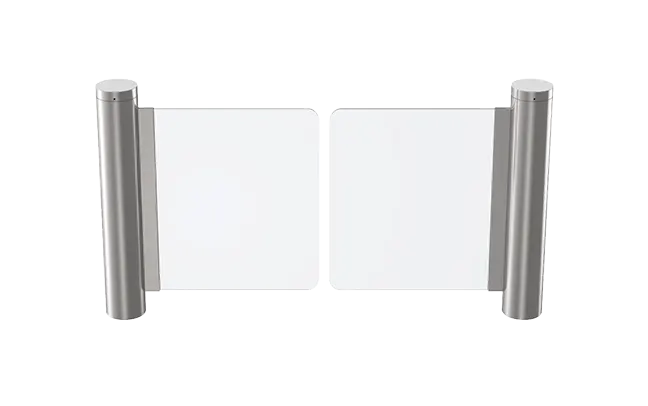

Cylinder Swing Gate with Servo Motor Z315
Reasonable and reliable design, low noise, smooth operation and long service life. With function of opening doors automatically under power-off state to meet the need of fire-fighting passage. Card can be set "with memory" or "without memory" functions. With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- Card can be set "with memory" or "without memory" functions.
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- With infrared anti-clip function (anti-clip when gate is open or running).
- Compatible with IC, ID card, scanning and face recognition,etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading,etc.
Details
 |
 |

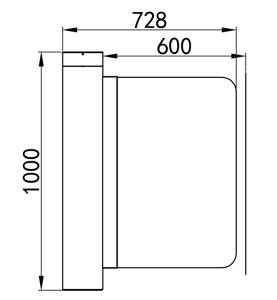

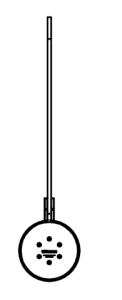

Size Drawing
 |
 |
 |
Parameters
| Size（L*W*H) | 168*168*1000mm |
| Pass width | 600-900mm |
| Power | 50W |
| Material | δ=2.2mm SUS304 Round tube |
| Bar Material | δ=10mm Clean Acrylic |
| Movement | Servo Swing Gate movement |
| Drive Unit | 200W servo |
| Power Supply | 24V 500W |
| Control Unit | Servo control system |
| Communication Interface | Dry contact & RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
