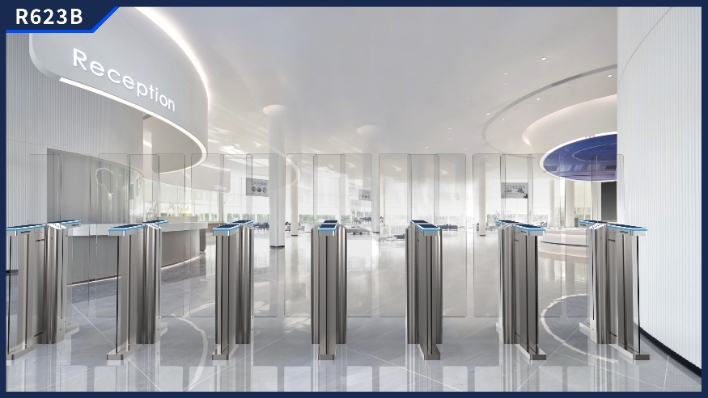

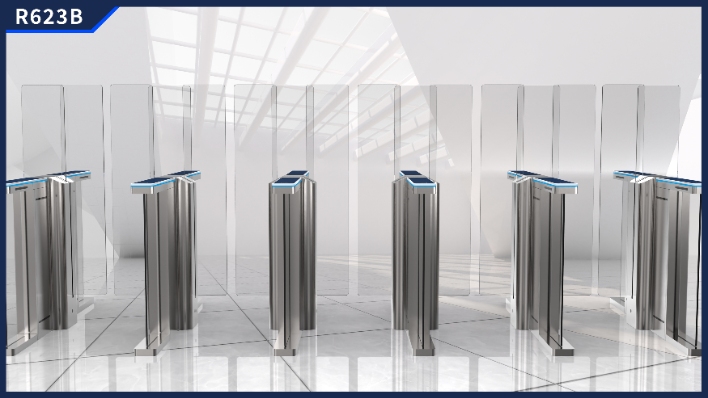

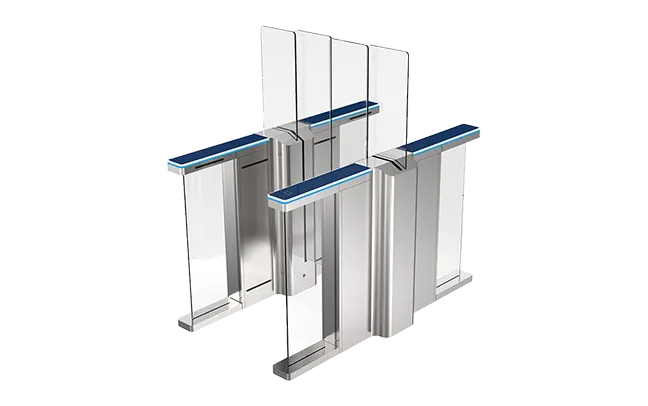

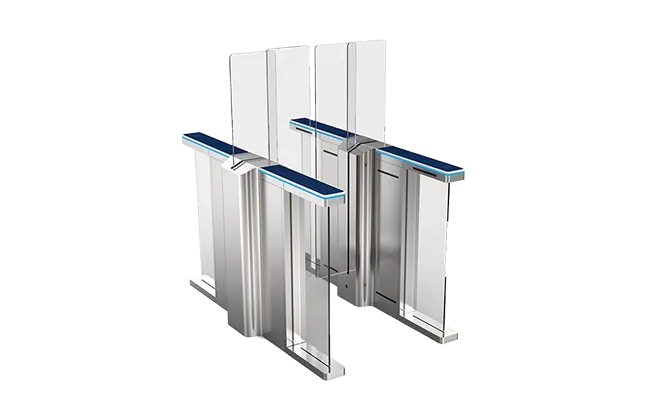

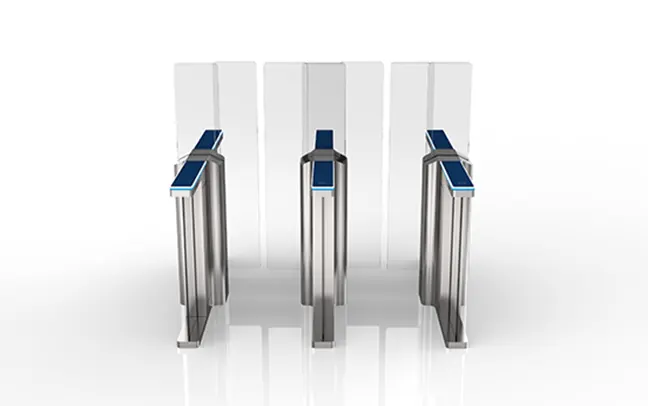

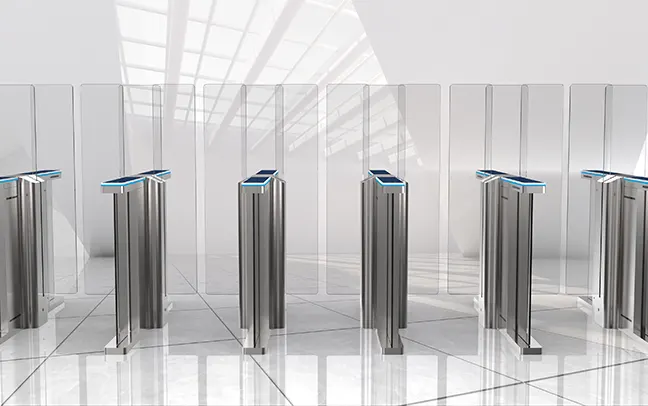

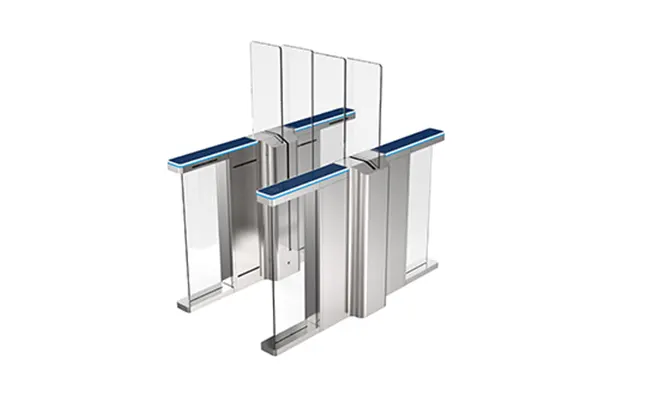

Full Height Sliding Turnstile Gate with Temper Glass Door R623
Reasonable and reliable design, low noise, smooth operation and long service life. With functions of anti-tail, anti-reverse pass and so on. Card can be set "with memory" or "without memory" functions. With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- With function of opening doors automatically under power-off state to meet the need of fire-fighting passage.
- With functions of anti-tail, anti-reverse pass and so on.
- Card can be set "with memory" or "without memory" functions.
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- With infrared anti-clip function (anti-clip when gate is open or running).
- Compatible with IC, ID card, scanning and face recognition,etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading,etc.
Details
 |
 |
Size Drawing
Parameters
| Size（L*W*H) | 1500*300*1000mm |
| Material | SPCC cold rolled sheet 1.5mm baking paint |
| Diaphragm material | 8mm tempered glass |
| Baffle material | 10mm tempered glass |
| Pass width | 550mm |
| Movement | Servo sliding gate |
| Power supply | 24V 500W |
| Input voltage | AC100V~240V,50/60HZ |
| Drive motor | Brushless servo 40:1 100W |
| Pass rate | Open 50 people/min; Usually closed 35 people/min |
| Speed of opening and closing | Adjustable from 0.5s to 1.5s |
| Sensor pairs | 7 pairs |
| Clutch size | 80mm outer diameter |
| Pilot lamp | RGB light |
| Communication mode | RS485 |
| Controls | Servo standard board + driver |
| Noise | ≤65dB |
| Temperature | -20℃~+85℃ |
| Humidity | ≤90% No condensation |
| Class of protection | IP4X |
| Environment | Indoor |
