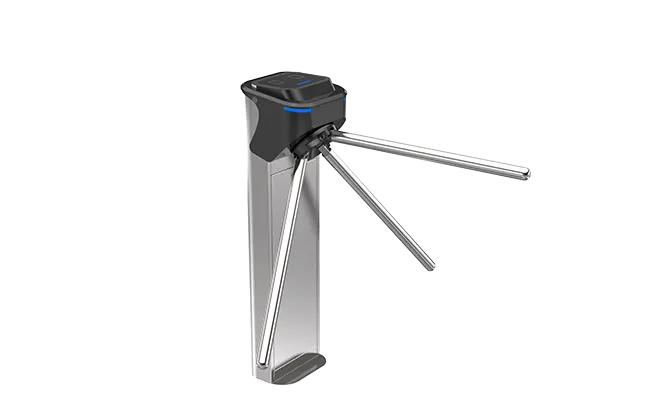

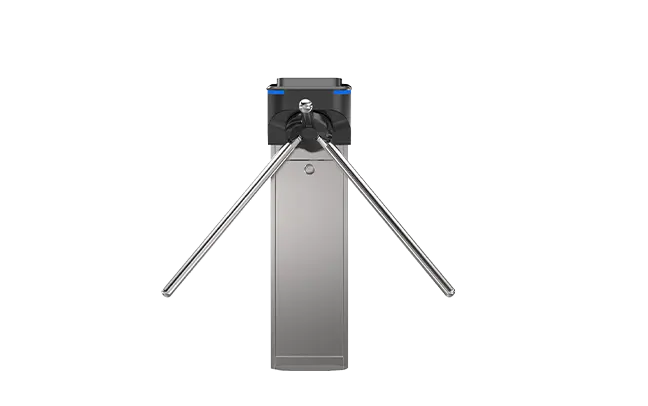

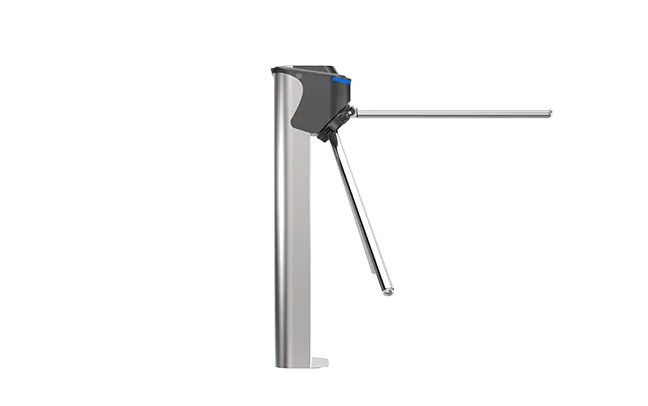

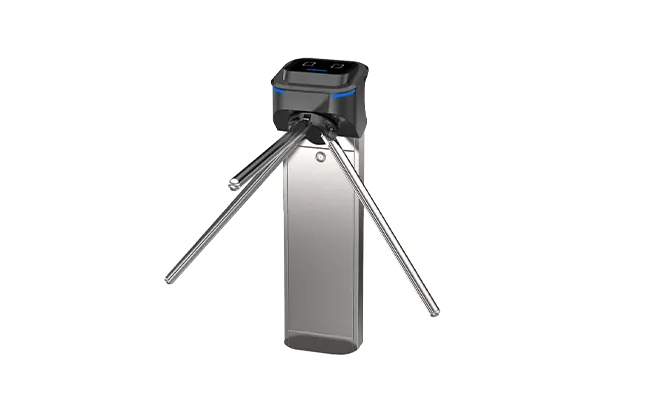

Narrow Mechanism Vertical Tripod Turnstile ES1219
Reasonable and reliable design, low noise, smooth operation and long service life. Using brushless motor, cooperating with our professional machine core, the function is more powerful. LED indicator, valid card showing green, illegal card showing red.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- Using brushless motor, cooperating with our professional machine core, the function is more powerful.
- LED indicator, valid card showing green, illegal card showing red.
- Card can be set "with memory" or "without memory".
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- Compatible with IC, ID card, scanning and face recognition.
- With unified and standard external electrical interface to facilitate system integration.
- Extensible to realize access control, attendance, fees and other functions.
- Can be used outdoors completely, one machine can be used as a lane.
Details
 |
 |

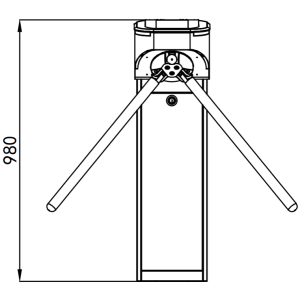

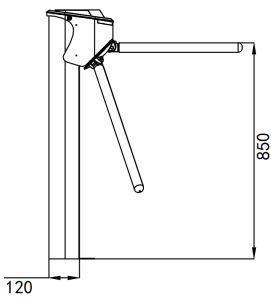

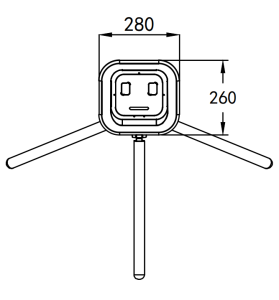

Size Drawing
 |
 |
 |
Parameters
| Size（L*W*H) | 280*260*980mm |
| Pass width | 550mm |
| Power | 35W |
| Material | δ=1.5mm SUS304 |
| Bar Material | SUS201 |
| Movement | Tripod turnstile movement with anti-pass back function |
| Indicator Light | RGB light |
| Power Supply | 24V 50W |
| Control Unit | Main board |
| Communication Interface | Dry contact & RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
