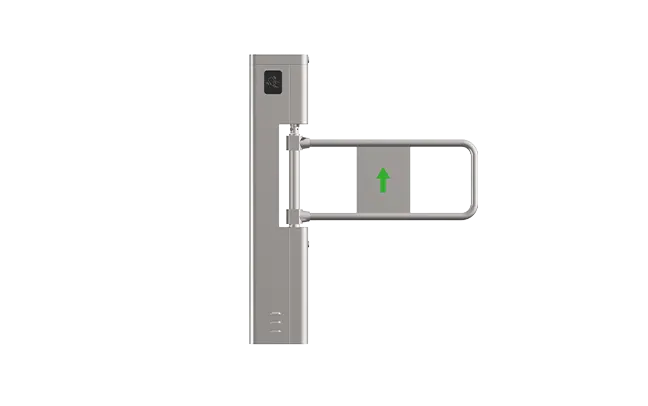

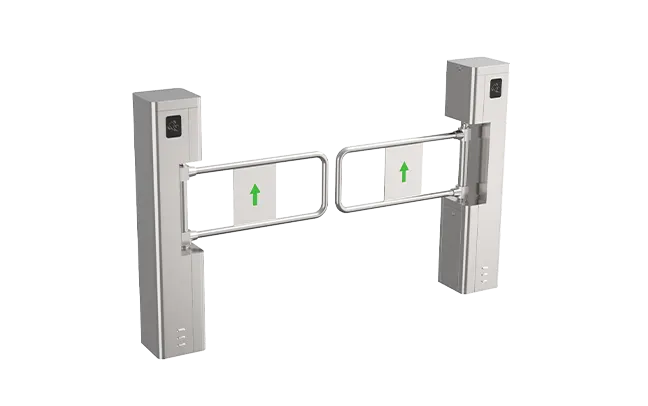

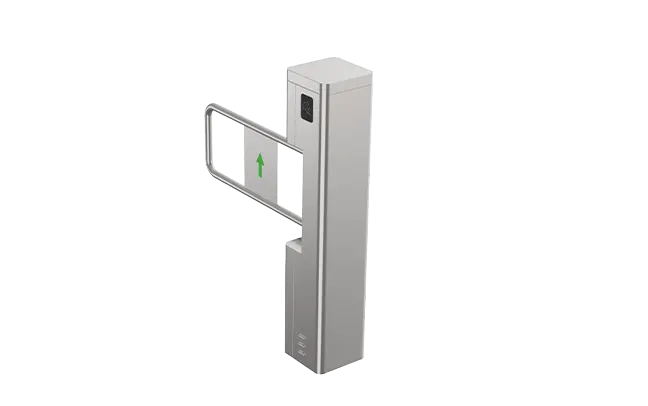

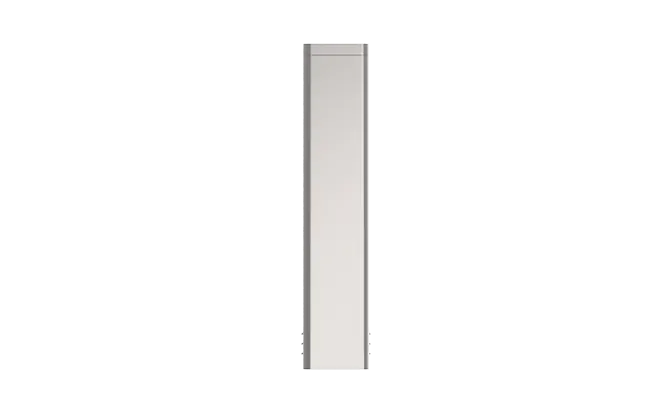

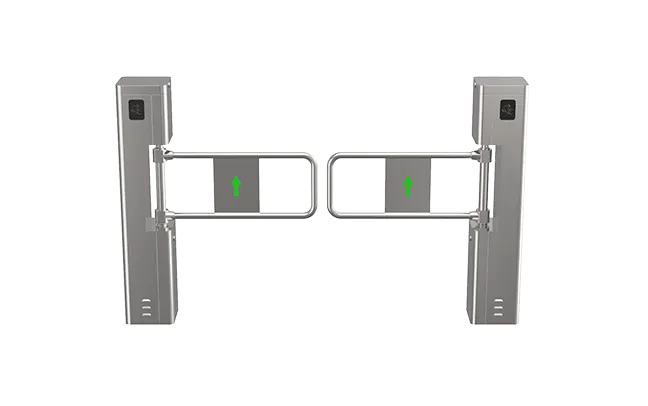

Pillar Swing Turnstile Gate with Stainless Steel
Reasonable and reliable design, low noise, smooth operation and long service life. With function of opening doors automatically under power-off state to meet the need of fire-fighting passage. Card can be set "with memory" or "without memory" functions. With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- With function of opening doors automatically under power-off state to meet the need of fire-fighting passage.
- Card can be set "with memory" or "without memory" functions.
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- With infrared anti-clip function (anti-clip when gate is open or running).
- Compatible with IC, ID card, scanning and face recognition,etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading,etc.
Details
 |
 |

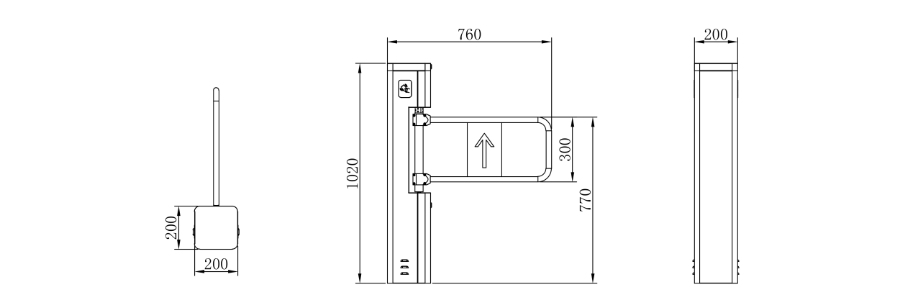

Size Drawing
Parameters
| Size（L*W*H) | 200*200*1020mm |
| Pass width | 600-900mm |
| Power | 50W |
| Material | Top δ=1.2mm/ body δ=1.0mm SUS304 |
| Bar Material | SUS304+Green arrow |
| Movement | Brushless Swing Gate movement |
| Drive Unit | Brushless DC Motor 90K 40W |
| Power Supply | 24V 150W |
| Control Unit | Brushless control system |
| Communication Interface | Dry contact & RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
