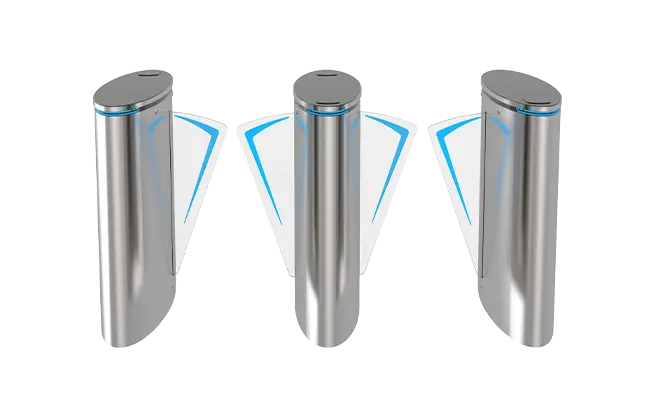

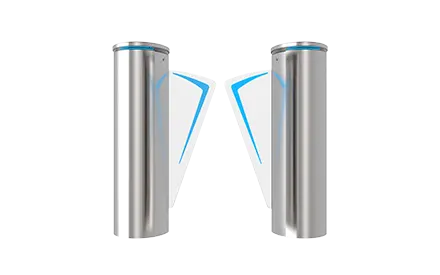

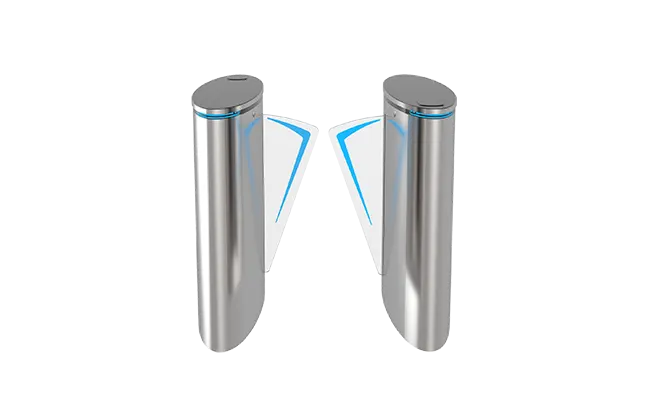

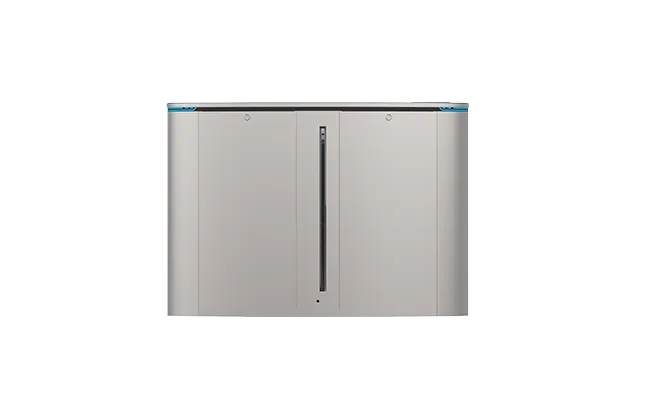

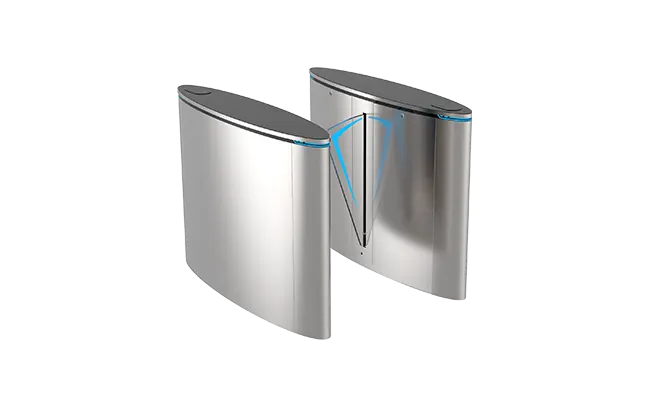

High-end Series SUS304 No.4 Polish Servo Motor Flap Barrier Gate A203

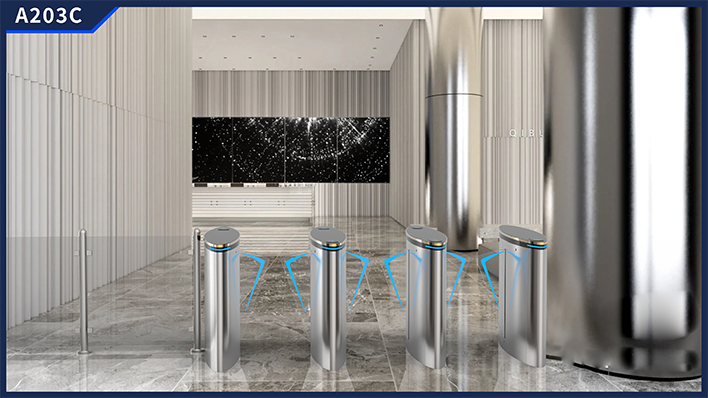

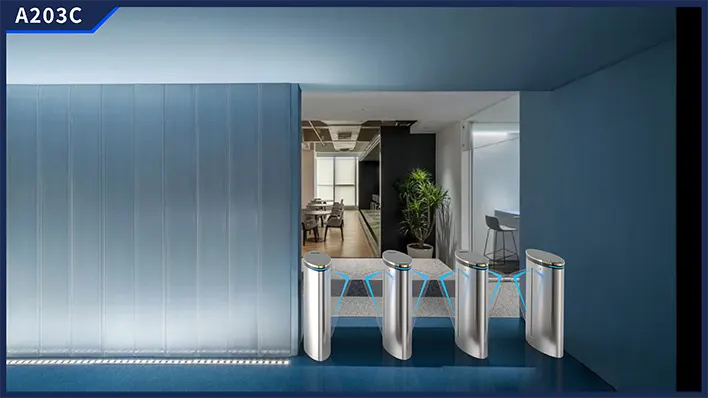

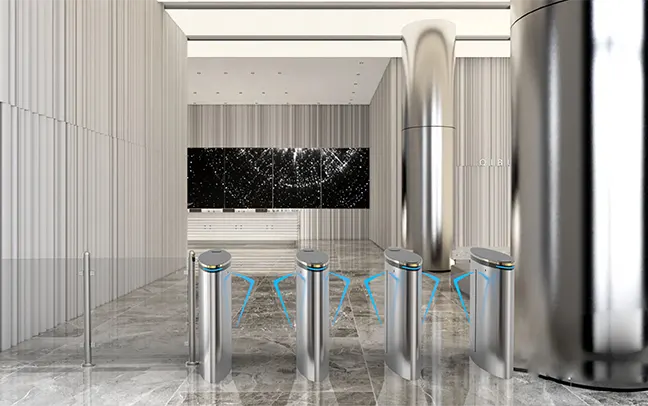

The A203C Telescopic Acrylic Flap Barrier Turnstile Gate is an advanced access control system designed for secure and efficient pedestrian management. Featuring a sleek and elegant design, this barrier gate is ideal for high-traffic areas such as office buildings, airports, subway stations, and commercial facilities.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- With functions of anti-tail, anti-reverse pass and so on.
- Card can be set "with memory" or "without memory" functions.
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- With infrared anti-clip function (anti-clip when gate is open or running).
- Compatible with IC, ID card, scanning and face recognition,etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading, etc.
Details
The A203C Telescopic Acrylic Flap Barrier Turnstile Gate is a modern and secure pedestrian access control system designed for efficient and controlled entry management. With its sleek acrylic flaps, high-speed operation, and intelligent access control compatibility, it is ideal for commercial buildings, public transport hubs, and secure facilities.
 |
 |

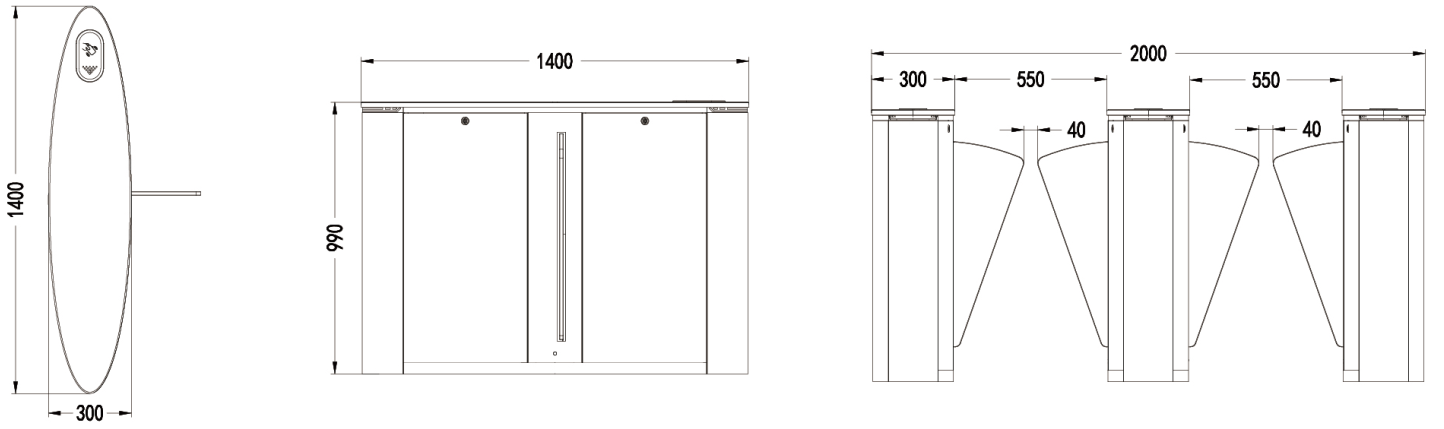

Size Drawing
Parameters
| Size（L*W*H) | 1400*3000*990mm |
| Pass width | 550mm |
| Power | 120W |
| Material | Top T=2.0mm/ body T=1.5mm SUS304 |
| Bar Material | 15mm Clean Acrylic+RGB light |
| Movement | Servo Flap Barrier Gate Movement |
| Infrared sensor | 7 pairs |
| Indicator Light | RGB light |
| Drive Unit | Brushless servo 100W |
| Power Supply | 24V 500W |
| Control Unit | Servo control system |
| Communication Interface | Dry contact/ RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
