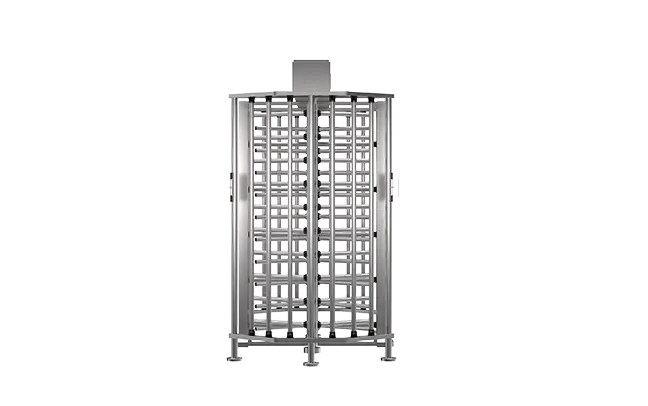

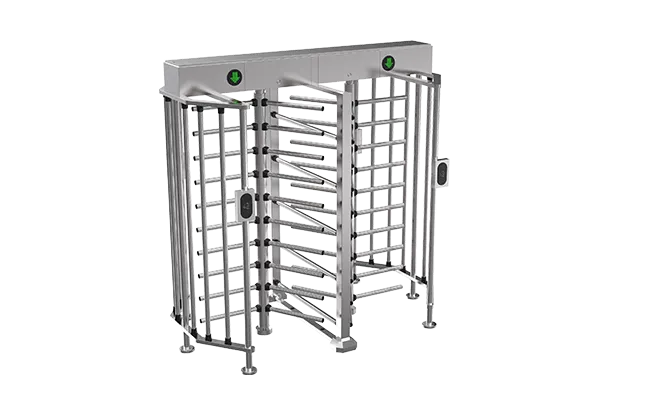

Portable Full Height Turnstile Gate G537-2
Reasonable and reliable design, low noise, smooth operation and long service life. With function of opening doors automatically under power-off state to meet the need of fire-fighting passage. Card can be set "with memory" or "without memory" functions. With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
Face Recognition
IC/ID Card
Temperature Detection
QR
Variant
Animations
 |
 |

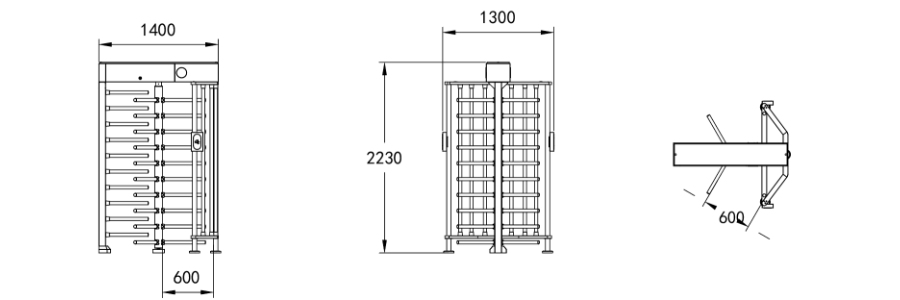

| Size（L*W*H) | 2200*1300*2230mm |
| Pass width | 550mm |
| Power | 50W |
| Material | Body δ=1.2mm / fence ф=1.0mm / Transmission Shaft ф=2.8mm SUS304 |
| Movement | molding full-height turnstile movement |
| Sensor | Limited sensor |
| Indicator Light | Dynamic indicator light |
| Drive Unit | Anti burn solenoid |
| Power Supply | 24V 150W |
| Control Unit | Main board |
| Communication Interface | Dry contact & RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor |
