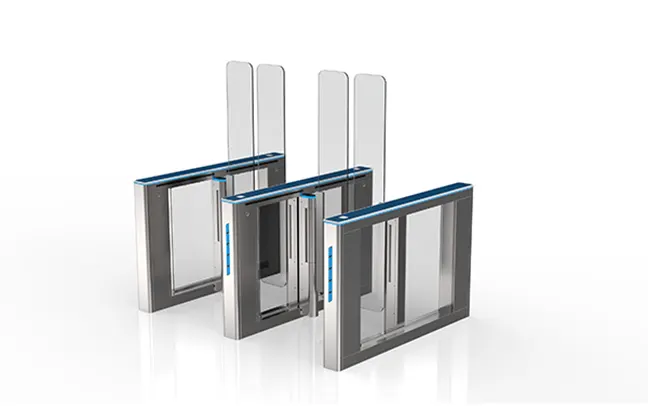

Servo Speed Gate with Full Height with Temper Glass Door R3211
Reasonable and reliable design, low noise, smooth operation and long service life. With functions of anti-tail, anti-reverse pass and so on. Card can be set "with memory" or "without memory" functions. With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- With function of opening doors automatically under power-off state to meet the need of fire-fighting passage.
- With functions of anti-tail, anti-reverse pass and so on.
- Card can be set "with memory" or "without memory" functions.
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- With infrared anti-clip function (anti-clip when gate is open or running).
- Compatible with IC, ID card, scanning and face recognition,etc.
- Two modes of operation are available: open or closed.
- Various working modes are available, including two-way card reading and one-way card reading,etc.
Details
 |
 |

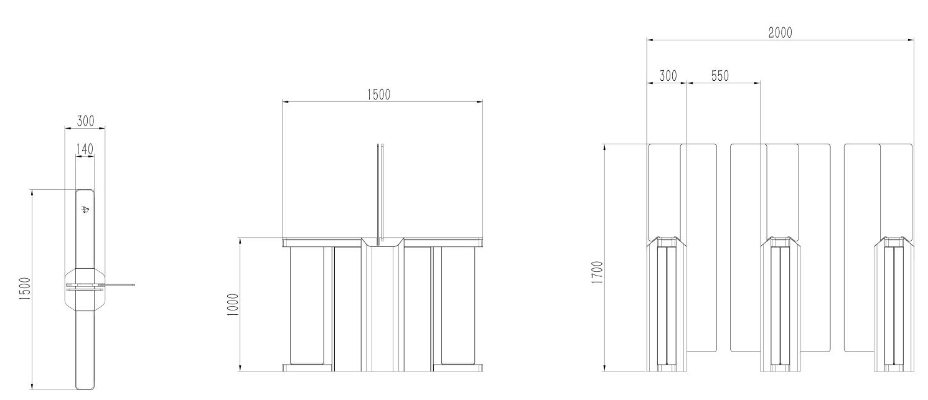

Size Drawing
Parameters
| Material | 12mm white marble+2.0mm imported SUSPolish 400# Snow line |
| Size | 1500*150*1700mm |
| Sensor pairs | 12 pairs |
| Pass rate | 35p/m |
| Pass width | 600mm |
| Input voltage | 100V~240V |
| Motor type | brushless servo motor |
| Environment | -25~+85℃ |
| Power supply | 24V 240W |
| Net weight | 100kg |
