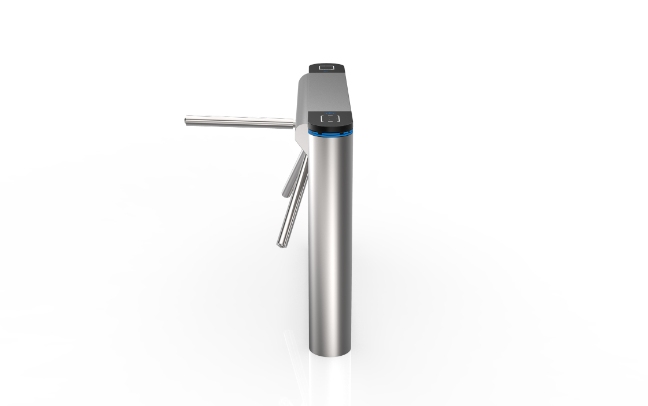

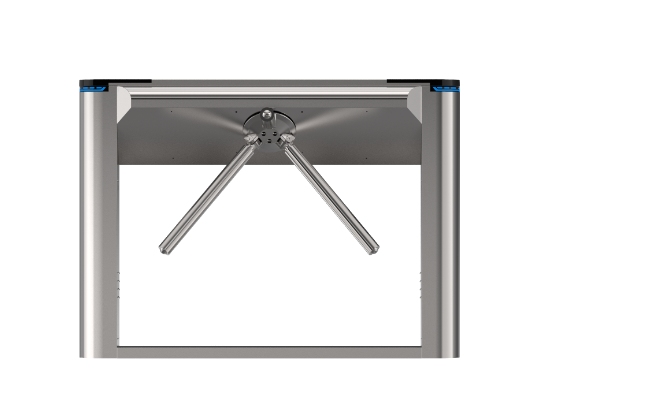

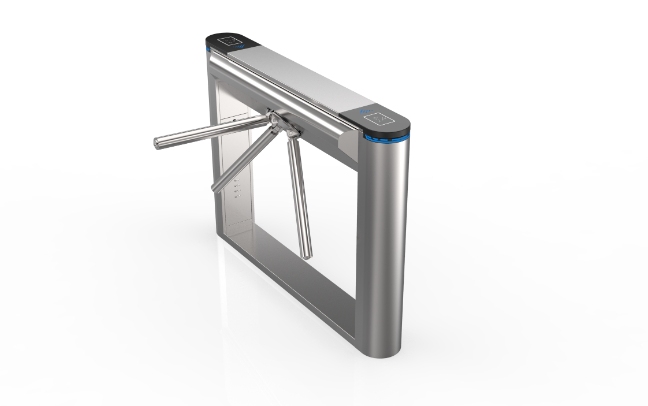

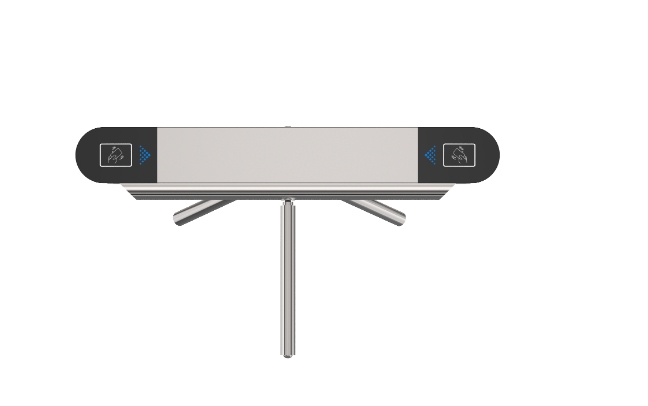

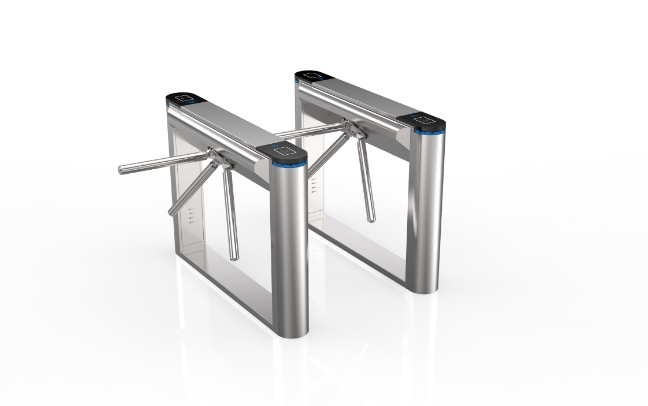

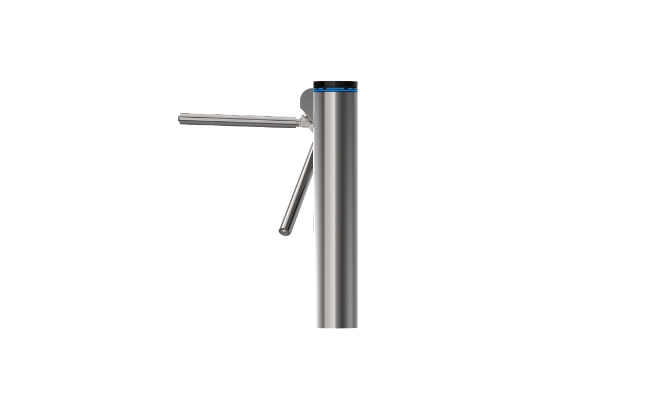

Slim Automatic Tripod Turnstile H106
Reasonable and reliable design, low noise, smooth operation and long service life. With functions of anti-tail, anti-reverse pass and so on. Card can be set "with memory" or "without memory" functions. With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
Face Recognition
IC/ID Card
Temperature Detection
QR
Consult
- Reasonable and reliable design, low noise, smooth operation and long service life.
- Equipped with power-off and pole dropping function, remote control can also be added for pole dropping control.
- LED indicator, valid card showing green, illegal card showing red.
- Card can be set "with memory" or "without memory".
- With automatic reset function, i.e. after having access to the gate, the gate automatically restores to the locked state if not pass within the time set.
- Compatible with IC, ID card, scanning and face recognition.
- With unified and standard external electrical interface to facilitate system integration.
- Extensible to realize access control, attendance, fees and other functions.

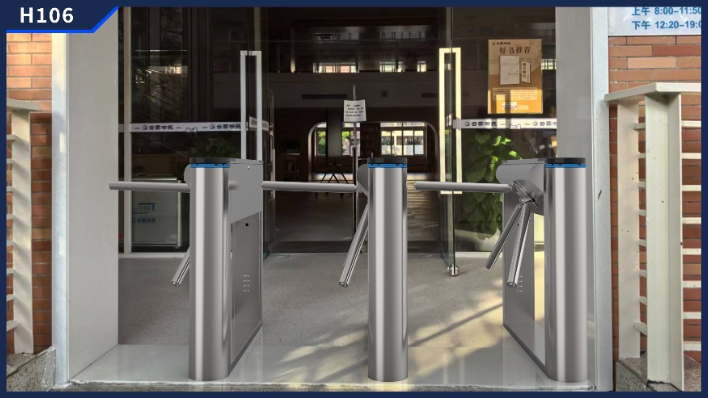

- Can be used outdoors completely, one machine can be used as a lane.

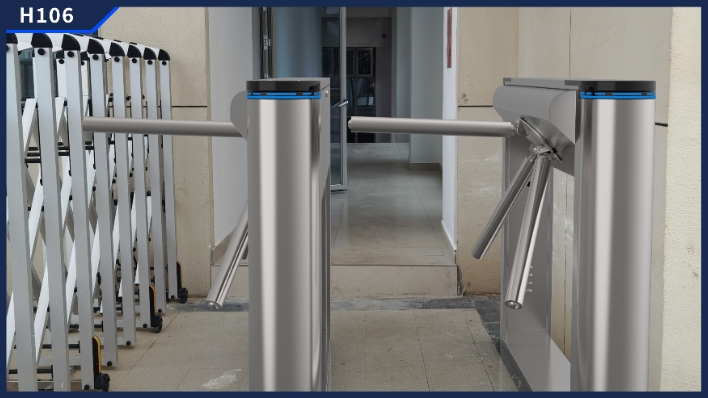

Details
 |
 |

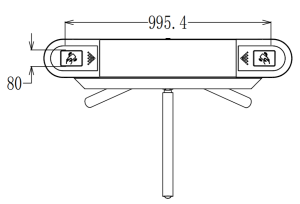

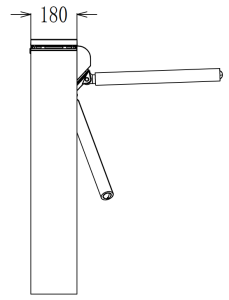

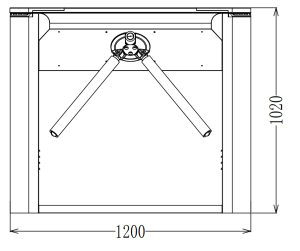

Size Drawing
 |
 |
 |
Parameters
| Size（L*W*H) | 1200*180*1020mm |
| Pass width | 550mm |
| Power | 50W |
| Material | Top T=1.5mm/ body T=12mm SUS304 |
| Bar Material | SUS201 |
| Movement | Brushless movement of automatic tripod turnstile |
| Clutch | ∅=80mm |
| Indicator Light | RGB light |
| Drive Unit | Brushless DC Motor 30k 40w |
| Power Supply | 24V 150W |
| Control Unit | Brushless control system |
| Communication Interface | Dry contact & RS485 |
| Pass rate | 35-50 persons/minute |
| Temperature | -20℃~+70℃ |
| Humidity | ≤90% No condensation |
| IP | IP4X |
| Environment | Indoor and outdoor (outdoor with canopy) |
